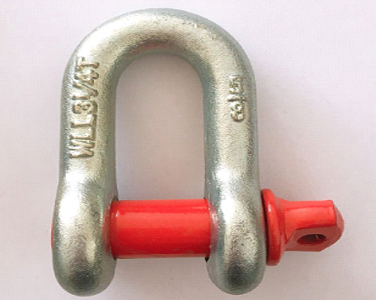

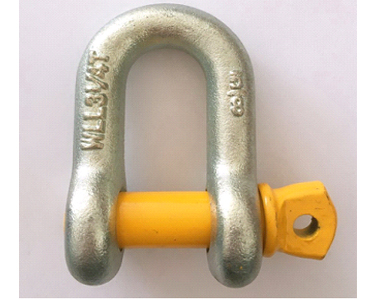

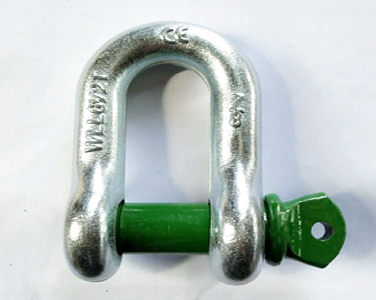

G210 US SCREW PIN CHAIN SHACKLE

G210 US SCREW PIN CHAIN SHACKLE

Product Features:

1. Size:From 3/16" to 3"

   WLL: From 0.3T to 85T

2. For lifting application.  Drop forged, quenched and tempered

Body: Carbon steel.   Pin: Alloy steel

Min breaking strength is 4 times or 6 times of the working load limit.

3. Surface Finish is usually Electric galvanised or hot dip galvanised

  Powder Plastified is also available

4. Marking: WLL, SIZE. or as per customers' request.

5. Package:PP Bag / Carton.  Plywood/Steel pallet



Product Code Weight Nominal WLL Dimensions(mm)
Each (kg) Size  (in.) (t)
210 210 A B C D E F G H L M P
HLF02A01 0.03 3/16 1/3 9.65 6.35 22.4 4.85 15.2 14.2 24.9 37.3 4.06 28.4 4.85
HLF02A02 0.05 1/4 1/2 11.9 7.85 28.7 6.35 19.8 15.5 32.5 46.7 4.85 35.1 6.35
HLF02A03 0.08 5/l6 3/4 13.5 9.65 31 7.85 21.3 19.1 37.3 53 5.6 42.2 7.85
HLF02A04 0.13 3/8 1 16.8 11.2 36.6 9.65 26.2 23.1 45.2 63 6.35 51.5 9.65
HLF02A05 0.2 7/16 1-1/2 19.1 12.7 42.9 11.2 29.5 26.9 51.5 74 7.85 60.5 11.2
HLF02A06 0.27 1/2 2 20.6 16 47.8 12.7 33.3 30.2 58.5 83.5 9.65 68.5 12.7
HLF02A07 0.57 5/8 3-l/4 26.9 19.1 60.5 16 42.9 38.1 74.5 106 11.2 85 17.5
HLF02A08 1.2 3/4 4-3/4 31.8 22.4 71.5 19.1 51 46 89 126 12.7 101 20.6
HLF02A09 1.43 7/8 6-1/2 36.6 25.4 84 22.4 58 53 102 148 12.7 114 24.6
HLF02A10 2.1 5 1 8-l/2 42.9 28.7 95.5 25.4 68.5 60.5 119 167 14.2 129 26.9
HLF02A11 3.06 1-1/8 9-l/2 46 31.8 108 29.5 74 68.5 131 190 16 142 31.8
HLF02A12 4.11 1—1/4 12 51.5 35.1 119 32.8 82.5 76 146 210 17.5 1 56.0 35.1
HLF02A13 5.28 1—3/8 13-1/2 57 38.1 133 36.1 0 92 84 162 233 19.1 174 38.1
HLF02A14 7.23 1一l/2 17 60.5 41.4 146 39.1 98.5 92 175 254 20.6 187 41.1
HLF02A15 12.1 1—3/4 25 73 51 178 46.7 127 106 225 313 25 40 231 57
HLF02A16 19.2 2 35 82.5 57 197 53.OO 146 122 253 348 31 263 61
HLF02A17 32.5 2.1/2 55 105 70 267 69 184 145 327 453 35.1 330 79.5
