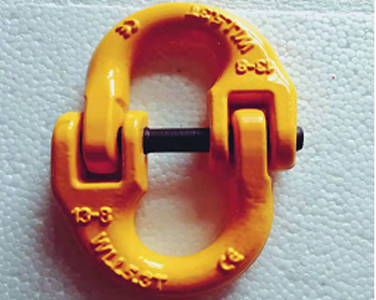

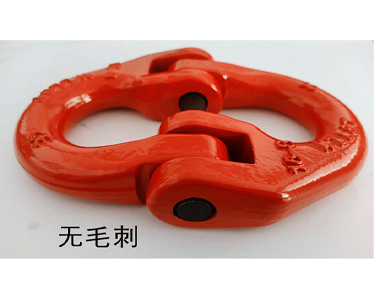

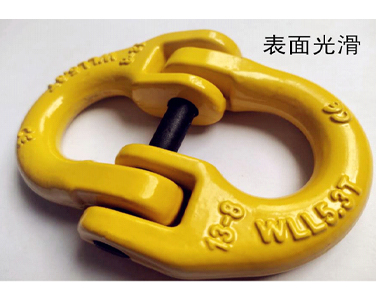

G80 EUROPEAN TYPE CONNECTING LINK

G80 EUROPEAN TYPE CONNECTING LINK

Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish:Powder Plastified

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet



Product code Size Kg/pc WLL/T B.L/T
HLF70P01 6-8 0.075 1.2 4.8
HLF70P02 7/8-8 0.16 2 8
HLF70P03 10-8 0.3 3.2 12.8
HLF70P04 13-8 0.6 5.4 21.6
HLF70P05 16-8 1.1 8.2 32.8
HLF70P06 20-8 1.9 12.5 50
HLF70P07 22-8 3.2 15.25 61
HLF70P08 26-8 4.65 21.25 85
HLF70P09 32-8 9.08 32.2 128.8
