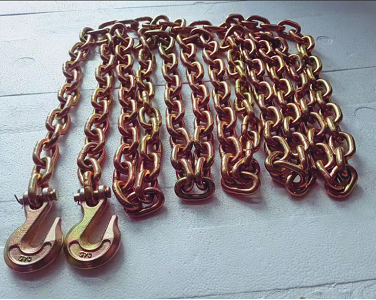

G70 Binder Chain With Clevis Grab Hook

G70 Binder Chain With Clevis Grab Hook

Different length is available depend on order's request

Surface Finish:Yellow Zinc

Regular mark: size, G7

Package: Cartons,Drum,pallet




Product SIZE ASTM80 NACM90 NACM96 Pcs
 Code  Per
W.T. WLL Mbs W.T. WLL Mbs W.T. WLL Mbs  Drum
 Kg  Lb  Lb  Kg  Lb  Lb  Kg  Lb  Lb
Grade70
HLF11H01 1/4"x14 5 3,150 12,600 4.5 3,150 12,100 4 3,150 12,600 50
HLF11H02 1/4"x16 6 3,150 12,600 5 3,150 12,100 5 3,150 12,600 40
HLF11H03 5/16"x14 7.5 4,700 18,800 7 4,700 18,800 7 4,700 18,800 35
HLF11H04 5/16"x16 8.5 4,700 18,800 8 4,700 18,800 8 4,700 18,800 30
HLF11H05 5/16"x18 9.5 4,700 18,800 9 4,700 18,800 9 4,700 18,800 30
HLF11H06 5/16"x20 10.5 4,700 18,800 10 4,700 18,800 10 4,700 18,800 25
HLF11H07 5/16"x25 13 4,700 18,800 12 4,700 18,800 12 4,700 18,800 20
HLF11H08 5/16"x30 15.5 4,700 18,800 14.5 4,700 18,800 14.5 4,700 18,800 20
HLF11H09 3/8"x14 10.5 6,600 26,400 9.5 6,600 24,700 10 6,600 26,400 25
HLF11H10 3/8"x16 12 6,600 26,400 11 6,600 24 11.5 6,600 26,400 20
HLF11H11 3/8"x20 15 6,600 26,400 13.5 6,600 24 14.5 6,600 26,400 20
HLF11H12 3/8"x25 18.5 6,600 26,400 16.5 6,600 24 18 6,600 26,400 15
