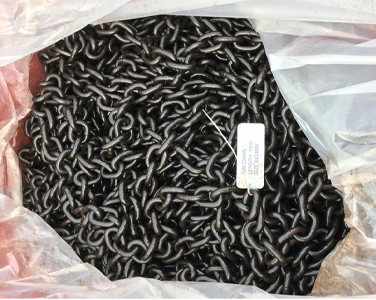

G80 Lifting Chain

G80 Lifting Chain

Material:High quality alloy steel

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish:Black

Regular mark: size, G80

Package: Steel Drum, Steel pallet




dn Inside Length(p) Width Working Load Limit Proof Testing Load Minimum Breaking Load
Size Allowed Torelance Ultimate Torelance Max,Inside Lenght Min,Inside Lenght Inside Wideth(b1) Outside Wideth(b2)
6 ±0.24 18 18.5 17.5 7.8 22.2 1.12 28.3 45.2
7 ±0.28 21 21.6 20.4 9.1 25.9 1.5 38.5 61.6
8 ±0.32 24 24.7 23.3 10.4 29.6 2 50.3 80.4
10 ±0.4 30 30.9 29.1 13 37 3.15 78.5 126
13 ±0.52 39 40.2 37.8 16.9 48.1 5.3 133 212
16 ±0.64 48 49.4 46.6 20.8 59.2 8 201 322
18 ±0.9 54 55.6 52.4 23.4 66.6 10 254 407
19 ±1 57 58.7 55.3 24.7 70.3 11.2 284 454
20 ±1 60 61.8 58.2 26 74 12.5 314 503
22 ±1.1 66 68 64 28.6 81.4 15 380 608
23 ±1.2 69 71.1 66.9 29.9 85.1 16 415 665
25 ±1.3 75 77.3 72.8 32.5 92.5 20 491 785
26 ±1.3 78 80.3 75.7 33.8 96.2 21.2 531 819
28 ±1.4 84 86.5 81.5 36.4 104 25 616 985
32 ±1.6 96 98.9 93.1 41.6 118 31.5 804 1290
36 ±1.8 108 111 105 46.8 133 40 1020 1630
40 ±2 120 124 116 52 148 50 1260 2010
45 ±2.3 135 139 131 58.5 167 63 1590 2540
48 ±2.5 144 149 139 60 170 72.5 1450 2900
