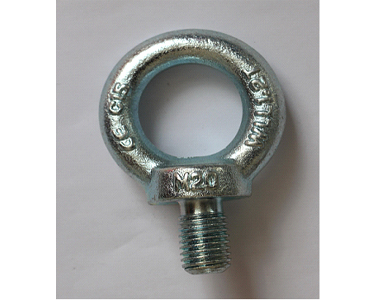

DIN580 EYE SCREW

DIN580 EYE SCREW

Product Features:

1.Size: M6-M64

2.Material:Carbon steel/Stainless steel

3.Surface: Electric galvanised or hot dip galvanised or others

4.Technology : drop forged

5. Marking: SIZE, CE, C15,WLL

6. Package:PP Bag / Carton,  Plywood/Steel pallet



Product Code Size (in) WLL (ton.) WLL (ton.) Dimensions(mm) Weight Each (kgpc)
d1 d2 d3 b e h k
HK06E01 M6* 0.07 0.05 17 28 16 13 6 17 6 0.05
HK06E02 M8* 0.14 0.095 20 36 20 15 6 18 8 0.06
HK06E03 M10* 0.23 0.17 25 45 25 18 8 22 10 0.11
HK06E04 M12 0.34 0.24 30 54 30 22 10 26 12 0.18
HK06E05 M14* 0.49 0.34 35 63 35 28 12 30 14 0.285
HK06E06 M16 0.7 0.5 35 63 35 28 12 30 14 0.28
HK06E07 M20 1.2 0.83 40 72 40 30 12 35 16 0.45
HK06E08 M22* 1.5 1.05 45 81 45 35 14 40 18 0.67
HK06E09 M24 1.8 1.27 50 90 50 38 16 45 20 0.78
HK06E10 M27* 2.5 1.65 50 90 50 38 18 45 20 0.88
HK06E11 M30 3.6 2.6 65 108 60 45 18 55 24 1.66
HK06E12 M33* 4.3 3.2 65 108 60 45 22 55 24 1.72
HK06E13 M36 5.1 3.7 75 126 70 55 22 65 28 2.65
HK06E14 M39* 6.1 4.3 75 126 70 55 26 65 28 2.8
HK06E15 M42 7 5 85 144 80 65 30 75 32 4.03
HK06E16 M45* 8 5.5 85 144 80 65 30 75 32 4.25
HK06E07 M48 8.6 6.1 100 166 90 70 35 85 38 6.38
HK06E18 M52* 9.9 7.3 100 166 90 70 35 85 38 6.6
HK06E19 M65 11.5 8.3 110 184 100 80 38 95 42 8.8
HK06E20 M64 16 11 120 206 110 90 42 100 48 12.4
